P-8305-101G pressure transducer is a low pressure transducer with a double diaphragm structure and built-in temperature compensation (0~50 degrees C). It has a wide working temperature range and can be used for various corrosive gases and liquids.

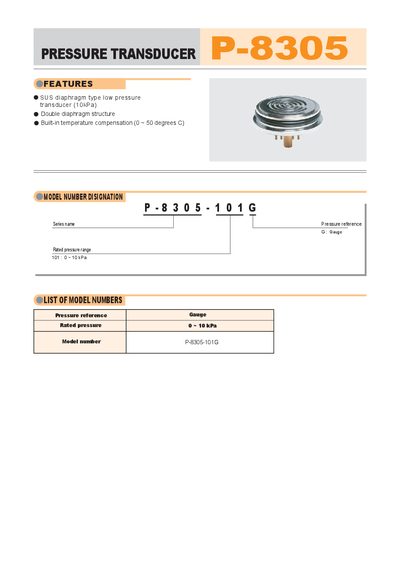

The P-8305-101G pressure transducer is a SUS diaphragm type low‑pressure sensor (0‑10 kPa) with a double‑diaphragm structure and built‑in temperature compensation (0‑50 °C). It provides gauge pressure reference and includes a stainless‑steel base and diaphragm (SUS316L) with a 2.54 mm terminal pin layout.
The manual lists standard specifications such as rated pressure range, maximum pressure, operating temperature range, bridge resistance, supply current, offset and span voltages, linearity, response time, and wiring connections for the four pins (outputs B/C and inputs B/C). Dimensional tolerances and material details are also provided.
| Rated pressure range | 0~10 kPa |
|---|---|
| Maximum pressure | 30 kPa |
| Break‑down pressure | 100 kPa |
| Operating temperature range | -20~70 °C |
| Compensated temperature range | 0~50 °C |
| Pressure medium compatibility | Corrosive gases liquid compatible with SUS316L |
| Bridge resistance | 4700 Ω ±30 % |
| Sealed liquid | Silicon oil |
| Net weight | ≈ 25 g |
| Supply current | 1.5 mA DC (rated) |
| Offset voltage | +3 mV |
| Span voltage | 25 mV ±10 mV |
| Linearity / Hysteresis | ±0.3 %FS |
| Thermal error | ±0.06 %FS/°C |
| Span error | ±0.04 %FS |
| Response time | ≈ 2 ms |
| Gravitational effect | +0.5 %FS max |
The transducer is rated for a pressure range of 0 to 10 kPa.
It operates from –20 °C to 70 °C, with compensated temperature range of 0 °C to 50 °C.
The rated supply current is 1.5 mA DC.
Pin 1 (Output B), Pin 2 (Output C), Pin 3 (Input C), and Pin 4 (Input B) are indicated by the wire colors in the manual.
