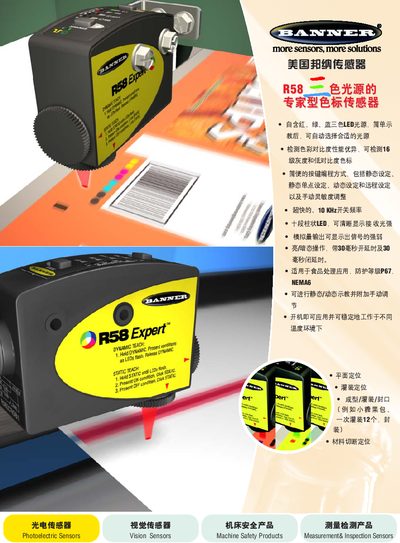

R58 color light source expert color bar sensor, self-contained red, green and blue LED light source, after simple teaching, can automatically select the appropriate light source, detection color contrast performance is excellent, can detect 16 levels of grayscale and low contrast color bar, simple key programming method, including static setting, static single point setting, dynamic setting and remote setting as well as manual sensitivity adjustment, super fast, 10KHz switching frequency, ten-segment columnar LED, can clearly display the received light intensity, analog output can show the signal strength, light / dark state operation, with 30 milliseconds open delay and 30 milliseconds closed delay.
The R58 is an expert‑grade color sensor with built‑in red, green and blue LEDs. It offers automatic light‑source selection, high contrast detection for up to 16 gray levels, and programmable modes including static, dynamic and remote settings. The sensor provides a fast 10 kHz switching frequency, a ten‑segment LED bar for intensity display, and analog output for signal strength.
Designed for food‑processing and packaging applications, the R58 meets IP67/NEMA 6 protection standards and operates from 10‑30 V DC. It supports both NPN and PNP output configurations, offers a 30 ms on‑delay and off‑delay, and can be used for planar, filling, molding, sealing and material‑cutting positioning tasks. This manual is written in Chinese.
| Switching Frequency | 10 kHz |
|---|---|
| Protection Rating | IP67, NEMA 6 |
| Output Type | NPN/PNP |
| LED Light Source | Red, Green, Blue LEDs |
The R58 sensor operates with a switching frequency of 10 kHz.
It is rated IP67 and complies with NEMA 6 standards.
Both NPN and PNP output types are supported.
