The MINI-BEAM ExpertTM sensor has a key teaching type sensor with a MINI-BEAM universal appearance, key teaching sensitivity, fast output response time, bipolar output, simple output setting, independent remote setting end, and green indicator light flashes when it indicates that the received signal strength is close to the switch threshold. The value is on to indicate the power-on indication.

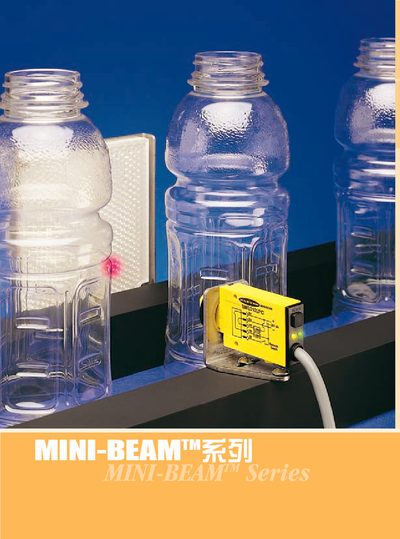

The MINI‑BEAM TM series from Banner Engineering includes expert‑type sensors for a variety of detection tasks, offering both NPN and PNP bipolar outputs, fast 500 µs response time, and selectable remote setting. The manual provides detailed technical parameters, wiring options, and environmental limits for both DC and AC versions.
Additional sections cover mounting accessories, cable extensions, and recommended reflector plates for different detection distances. Safety and protection features such as reverse polarity protection, over‑voltage protection, and NEMA/IP67 ratings are also described. This manual is written in Chinese.
| Supply voltage | 10 ~ 30 V DC |
|---|---|
| Idle current | < 45 mA |
| Output type | Bipolar NPN/PNP |
The sensor has a response time of 500 µs.
Sensors can be wired with a 5‑core 2 m cable, a 9 m cable, or a 5‑pin Euro connector.
It meets NEMA 1,2,3,4,4X,6,12,13 and IEC IP67 ratings.
