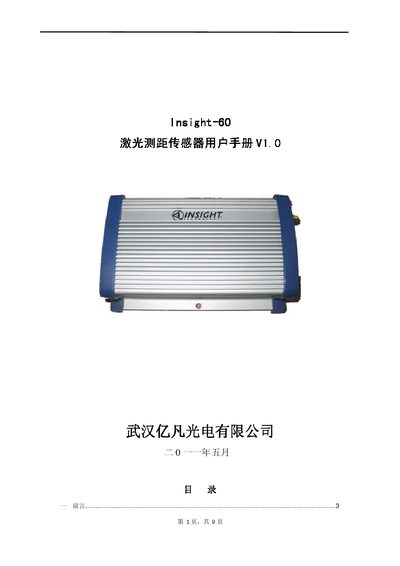

This document is the user manual for the Efan Optoelectronics Laser Rangefinder. It describes the features and characteristics of the product, including non-contact measurement, suitability for various weather conditions, small size, and high measurement accuracy.
The Insight-60 laser rangefinder is a compact, lightweight device designed for industrial measurement in various environments, offering non‑contact measurement with high accuracy and fast speed. The manual provides safety guidelines, proper handling, and maintenance instructions to ensure reliable operation.
Detailed sections describe the laser class, technical parameters, interface definitions (DB9, RS232/RS485, 4‑20 mA), command set for reading address, distance, and configuring offsets, as well as troubleshooting and after‑sales support contacts. This manual is written in Chinese.
| Rated Voltage | 12 V |
|---|---|
| Maximum Voltage | 36 V |
| Operating Current | <1000 mA |
| Measurement Range | 0.05 m – 60 m |
| Operating Temperature | -10 °C to 70 °C |
| Storage Temperature | -25 °C to 75 °C |
| Dimensions | 130 mm × 89 mm × 42 mm |
| Laser Class | Class 2 (IEC 825‑1) |
The sensor can measure distances from 0.05 m up to 60 m.
