Digital Stat-Arc 2 IS is a meter designed for hazardous locations. It features a pulsing-beam range finder for always obtaining the correct reading, exclusive Auto-Zero circuit, HOLD button to capture transient readings, recorder output, and 40-hour battery life. It also provides drift-free accuracy even in ionized environments and has a charged plate adapter available. The Model 282IS is intrinsically safe and UL certified for use in Class I Groups A, B, C, D and Class II Groups E, F, G.

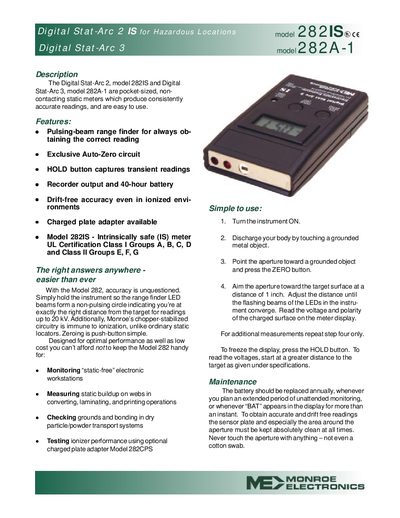

The Digital Stat‑Arc 2 (model 2821S) and Digital Stat‑Arc 3 (model 282A-1) are pocket‑sized, non‑contacting static meters that provide accurate, drift‑free readings up to 20 kV at a 1‑inch distance. They feature a pulsing‑beam range finder, auto‑zero circuit, HOLD button, and a 40‑hour battery life.
These meters are intrinsically safe (IS) and UL‑certified for various groups. They include a 9 V NEDA battery, LCD display with polarity readout, analog output (1 V = 10 kV), and a standard 3/32‑inch phone‑plug jack for external connections. Maintenance requires annual battery replacement and keeping the aperture clean.
| Display | LCD, 3‑digit with auto polarity readout, HOLD and LOW BATT indicators |
|---|---|
| Range | 0 to +19.99 kV at 1 inch |
| Accuracy | +5 % of reading, + zero offset, +2 Isd |
| Analog output | 1 V signal denotes 10 kV reading |
| Response time | 80‑100 ms (10‑90 % response) |
| Jack type | Standard 3/32 inch (2.5 mm) monaural phone plug |
| Battery | 9 V NEDA #1604 or equivalent, 40 h life |
| Physical dimensions | 2.4 × 4.2 × 0.9 in (6.1 × 10.7 × 2.3 cm) |
| Weight | 5 oz (0.14 kg) with battery |
| Operating temperature / humidity | 0‑50 °C, up to 85 % RH |
Press the HOLD button to freeze the displayed voltage.
The meter provides accuracy of ±5 % of reading plus zero offset and a 2 Isd component.
