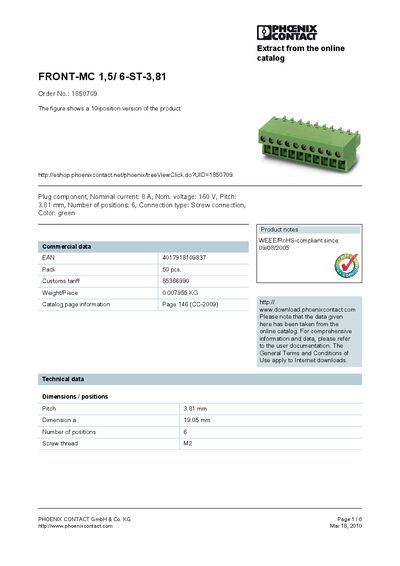

FRONT-MC 1,5/ 6-ST-3,81 is a connector produced by PHOENIX CONTACT. It has a rated current of 8 A and a rated voltage of 160 V.
The FRONT-MC 1,5/6-ST-3,81 is a 6‑position terminal block with a 3.81 mm pitch, green‑colored housing, and screw‑type connections. It is rated for 8 A nominal current and 160 V nominal voltage, making it suitable for a variety of wiring applications.
The sheet also lists accessories such as marker pens and cards, certification approvals (CB, CSA, CUL, UL, VDE‑PZI), and detailed mechanical dimensions. Ordering information and the manufacturer's contact details are included at the end of the document.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 6 |
| Connection type | Screw connection |
| Color | green |
| Weight per piece | 0.007955 kg |
| Dimension (height) | 19.05 mm |
The nominal current is 8 A.
The pitch is 3.81 mm.
It is certified by CB, CSA, CUL, UL and VDE‑PZI.
