The guide begins with safety warnings, proper handling of the power cord, and precautions for installation, including removal of transport bolts and correct placement of the machine. It also details the required water pressure, electrical connection, and environmental limits for reliable operation.

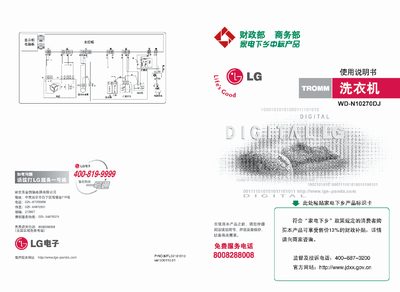

Further sections describe the washing programs, detergent usage, maintenance procedures, and troubleshooting tips. The final pages list technical specifications such as power consumption, dimensions, capacity, and warranty information, helping users understand the machine’s performance and service terms. This manual is written in Chinese.
| Power consumption per cycle | 1.14 kWh |
|---|---|
| Dimensions (W×H×D) | 600 mm × 440 mm × 850 mm |
| Weight | 58 kg |
| Maximum wash capacity | 6.0 kg |
| Maximum power | 1610 W |
| Spin speed options | 400/600/800/1200 (1000) rpm |
| Wash noise | 57 dB(A) |
| Spin noise | 70 dB(A) |
| Standard water pressure | 30 kPa – 1000 kPa |
Use the supplied wrench to loosen and remove the four transport bolts, keep the bolts and wrench for later re‑installation.
The water pressure should be between 30 kPa and 1000 kPa.
The whole machine is covered for one year, with the control board covered for three years and the motor for ten years.
Use a grounded three‑core 220 V, ≥10 A socket, avoid power strips, keep the plug dry, and have any damaged cord replaced by a professional.
