JWSKE-6 series enhanced temperature and humidity transmitter is a product of ColliHigh Sensors Technology Co., Ltd., facing strong electromagnetic interference environment, for fast bypass pulse group, static electricity discharge and pressure, made a special design, the sensor can accurately measure the temperature and humidity range of -40℃~120 ℃ and 0~100％RH, the circuit uses temperature compensation, the product works stably and reliably.
The JWSKE-6 series enhanced temperature‑humidity transmitter is an industrial‑grade sensor designed for strong electromagnetic interference environments. It measures temperature from –40 °C to 120 °C and humidity from 0 % RH to 100 % RH with high accuracy and fast response.

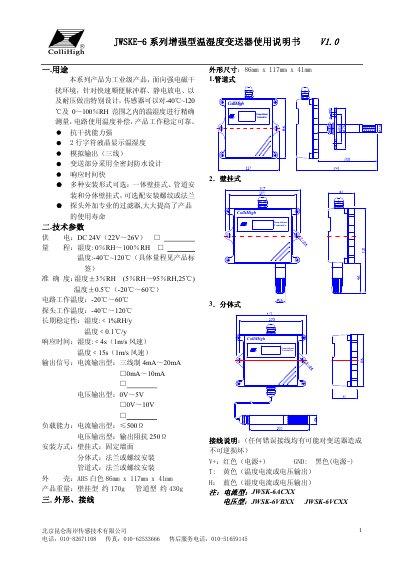

The manual covers technical parameters, physical dimensions, wiring colour codes, installation methods for wall‑mount, pipe‑mount and split‑type configurations, operation procedures, safety precautions, maintenance, storage, unpacking checks and troubleshooting guidance. This manual is written in Chinese.
| Supply voltage | DC 24 V (22 V–26 V) |
|---|---|
| Temperature range | ‑40 °C ~ 120 °C |
| Humidity range | 0 % RH ~ 100 % RH |
| Temperature accuracy | ±0.5 °C (‑20 °C ~ 60 °C) |
| Humidity accuracy | ±3 % RH (5 % RH ~ 95 % RH, 25 °C) |
| Output signal (current) | 4‑20 mA (optional 0‑10 mA) |
| Output signal (voltage) | 0‑5 V or 0‑10 V |
| Physical dimensions | 86 mm × 117 mm × 41 mm |
The wall‑mount transmitter has two φ4 mounting holes on each side; fix it to the wall with the supplied expansion screws.
V+ is red, GND is black, T (temperature output) is yellow, and H (humidity output) is blue.
It is recommended to calibrate the transmitter at least once a year to maintain measurement accuracy.
Store the transmitter at 10 °C ~ 40 °C and 20 % RH ~ 80 % RH.
