This document introduces the features and characteristics of the HDIE-C41 series DC current transducer produced by Beijing Passion Technology Co., Ltd., including measurement of DC current, strong overload capacity, fast response speed, and high linearity. The product is widely used in the system control and detection of electrical equipment in industries such as power, petroleum, coal mining, chemical, railway, communication, and building automation.
The HDIE-C41 series is a Hall‑effect, open‑loop DC current sensor that converts measured current into proportional DC current or voltage output. It offers high accuracy, simple structure, and robust isolation, making it suitable for power, oil, coal, chemical, railway, communication, and building‑automation applications.

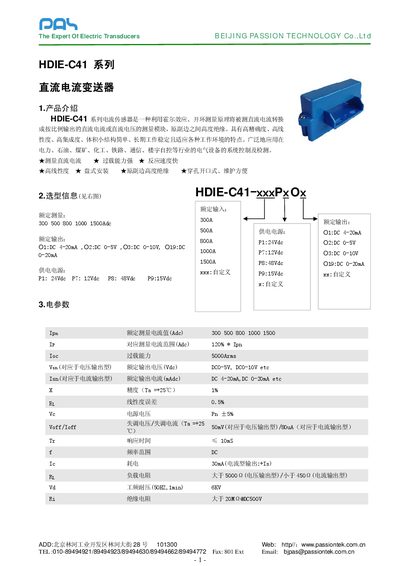

The manual includes product introduction, selection information, electrical parameters, mechanical drawings, wiring diagrams, output curves, and safety instructions. It details rated measurement ranges, overload capability, output options, response time, and environmental limits, helping engineers install and operate the transmitter safely. This manual is written in Chinese.
| Rated measurement current (A) | 300, 500, 800, 1000, 1500 |
|---|---|
| Overload current | 5000 A |
| Output voltage range | 0‑5 V, 0‑10 V |
| Output current range | 4‑20 mA, 0‑20 mA |
| Linearity error | 0.5 % |
| Response time | ≈10 ms |
| Insulation resistance | >20 MΩ @ DC500 V |
| Load resistance | >5000 Ω (voltage output) / <450 Ω (current output) |
| Power consumption | 30 mA |
| Dimensions | 64 mm × 16 mm |
The transmitter can tolerate an overload current of up to 5000 A.
Ensure wiring terminals are not exposed, avoid ESD, and only qualified engineers should perform the wiring.
