This document introduces the features and characteristics of the HDIE-C43 series DC current transducer, including high accuracy, high linearity, high integration, small size, simple structure, and long-term stability. This product is widely used in the system control and detection of electrical equipment in industries such as power, petroleum, coal mining, chemical, railway, communication, and building automation.
The HDIE-C43 series is a Hall‑effect, open‑loop DC current sensor that converts measured current into proportional DC current or voltage. It offers high accuracy, linearity, integration, and strong isolation, making it suitable for power, oil, coal, chemical, railway, communication and building‑automation applications.

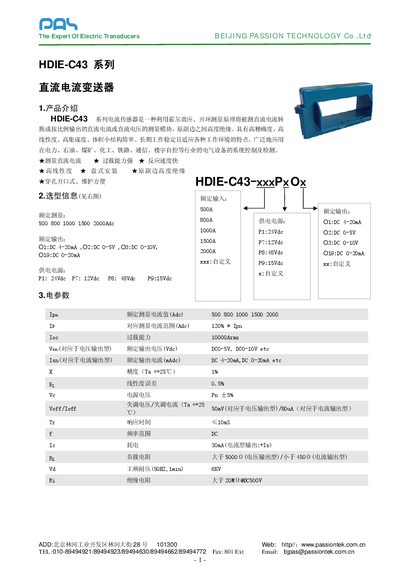

The document includes product introduction, selection information, electrical parameters, mechanical dimensions, wiring diagram, output curves, and safety precautions. It also lists the available output types (4‑20 mA, 0‑5 V, 0‑10 V), overload capacity, operating temperature range, and other key specifications. This manual is written in Chinese.
| Linearity Error | ±0.5 % |
|---|---|
| Operating Temperature Range | -25 °C to +70 °C |
| Storage Temperature Range | -40 °C to +185 °C |
| Weight | ≈600 g |
| Humidity Range | 20 %–90 % non‑condensing |
| Insulation Resistance | ≥20 MΩ |
| Dielectric Strength | 6 kV (50 Hz) |
| Power Consumption | 30 mA |
| Load Resistance (Voltage Output) | ≥5 kΩ |
The device operates from –25 °C to +70 °C.
