The HZIB-C15-xxxPxxOxx series current sensor is a measurement module that converts the measured current into a voltage signal that follows the output using the Hall effect and open-loop measurement principle. It has the characteristics of high accuracy, high linearity, high integration, compact size, simple structure, long-term stability, and adaptability to various working environments. It is widely used in the system control and detection of electrical equipment in industries such as power, petroleum, coal mining, chemical, railway, communication, and building automation.
The HZIB-C15-xxxPxxOxx series current sensors are designed with high precision, high stability, high integration and a compact size. They are suitable for a wide range of applications such as power transmission, oil, petrochemical, railway, communication, building automation and other control systems.

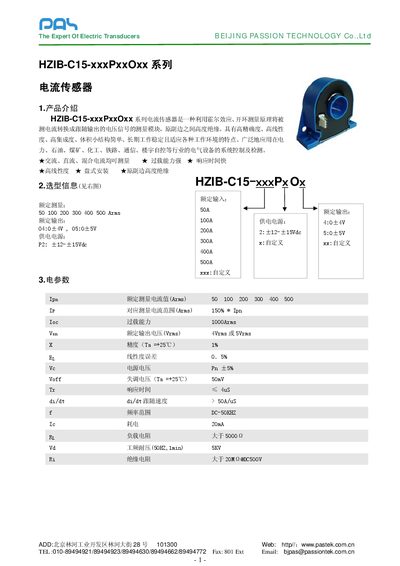

The document lists the electrical parameters (rated current up to 500 A, accuracy 1 % at 25 °C, bandwidth up to 50 kHz), mechanical dimensions, terminal assignments, operating temperature range (‑25 °C to +70 °C) and safety guidelines for installation and use. This manual is written in Chinese.
| Rated Current | 50 A – 500 A |
|---|---|
| Rated Output Voltage | 4 Vrms or 5 Vrms |
| Accuracy (Ta = +25 °C) | ±1 % |
| Temperature Coefficient | ±0.5 % |
| Output Voltage Error (Ta = +25 °C) | ±50 mV |
| Bandwidth | DC – 50 kHz |
| Power Consumption | 20 mA |
| Operating Temperature Range | -25 °C to +70 °C |
| Storage Temperature Range | -40 °C to +85 °C |
| Weight | 100 g |
| Humidity Range | 20 % – 90 % RH |
| Mounting Hole Diameter | 20 mm |
| Terminal 1 | Positive current source |
The sensor is rated for currents from 50 A up to 500 A.
It offers an accuracy of ±1 % when measured at 25 °C.
The sensor can operate between –25 °C and +70 °C.
Terminal 1 is the positive current source, and Terminal 2 is the negative current source.
