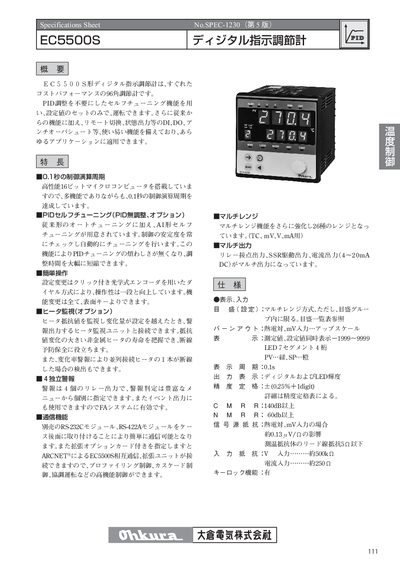

EC5500S type digital indication regulator is a 96-angle regulator with excellent cost performance. It uses a self-tuning function that does not require PID adjustment, and only needs to set the set value to operate. In addition, it has DI, DO, anti-overshoot and other easy-to-use functions such as remote switching, state output, etc., which can be applied to various application scenarios.
The EC5500S is a digital indicator controller offering self‑tuning PID, remote switching, and multiple I/O functions such as DI, DO, and anti‑overshoot. It includes a 16‑bit microcomputer that achieves a 0.1 s control calculation cycle and supports optional heater monitoring and servo drive.
The device provides 26 selectable measurement ranges (TC, mV, V, mA), multi‑output options (relay contacts, SSR drive, 4‑20 mA DC), and communication modules for RS‑232C, RS‑422A, or ARCNET. Technical specifications include ±0.25 % accuracy, 0.05 % resolution, and a power supply of 85‑264 V AC, 45‑65 Hz. This manual is written in Japanese.
| Control calculation cycle | 0.1 s |
|---|---|
| Microcontroller | 16‑bit |
| Measurement ranges | 26 types (TC, mV, V, mA) |
| Accuracy | ±0.25 % |
| Resolution | 0.05 % (≤0.05 % below 1999) |
| Power supply | 85‑264 V AC, 45‑65 Hz |
| Communication speed | 300‑9600 bps |
The controller performs a control calculation every 0.1 second.
The device supports 26 selectable ranges covering thermocouples, millivolts, volts, and milliamps.
The accuracy rating is ±0.25 %.
