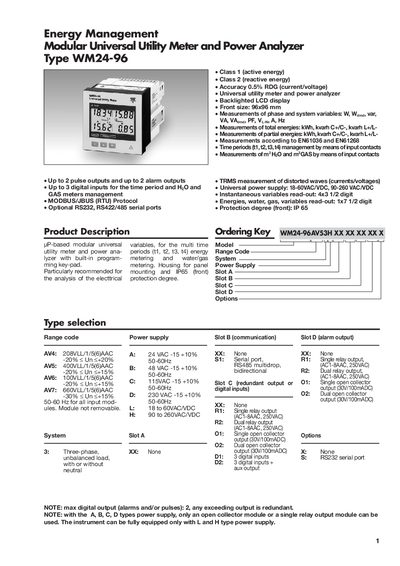

WM24-96 is a modular universal utility meter and power analyzer with a built-in programming key-pad. It is particularly recommended for the analysis of the electrical variables, for the multi time periods (t1, t2, t3, t4) energy metering and water/gas metering. Housing for panel mounting and IP65 (front) protection degree.
The WM24-96 combines utility metering and power analysis in a compact 96 × 96 mm front panel. It measures voltage, current, power, power factor, frequency, and energy (kWh, kvarh) for three‑phase systems, and supports water and gas metering. The device features a back‑lit LCD, up to two pulse outputs, three digital inputs, and optional modules for relay or open‑collector outputs.
Communication is provided via MODBUS/JBUS (RTU) protocol with optional RS232, RS422/485 ports. Power is supplied by a universal range of 18‑60 VAC/VDG or 90‑260 VAC/VDG. The unit is rated IP65 (front), operates from 0 °C to +50 °C, and meets IEC and EN safety standards, making it suitable for residential, commercial, and light‑industrial environments.
| Front size | 96x96 mm |
|---|---|
| Accuracy | 0.5% RDG (current/voltage) |
| Power supply range | 18-60VAC/VDG, 90-260VAC/VDG |
| Front protection degree | IP65 |
| Operating temperature | 0 to +50 °C |
| Communication protocol | MODBUS/JBUS (RTU) |
The device provides up to two pulse outputs.
The WM24-96 can be equipped with up to three digital inputs, with an optional auxiliary input module.
Instantaneous variables are shown with a 4 × 3 ½‑digit display, while energy, water, and gas values use a 1 × 7 ½‑digit display.
It has an IP65 front protection rating, operates from 0 °C to +50 °C, and can be stored from –10 °C to +60 °C.
