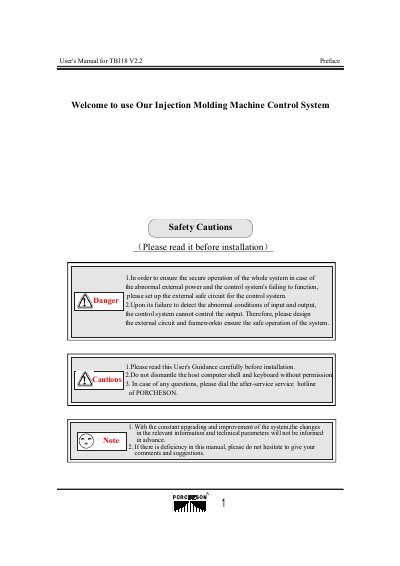

This manual introduces the installation, use and maintenance of TB118 V2.2 control system
This manual covers the complete setup and operation of the TB118V2.2 injection molding machine control system. It includes safety cautions, system configuration, parameter settings, debugging procedures, and detailed descriptions of input/output state detection.
The document also provides wiring diagrams, power‑supply connections, and interference‑suppression methods, ensuring reliable and safe operation of the machine. Installation guidelines emphasize proper grounding, separation of high‑ and low‑pressure lines, and use of the supplied cables.
| LCD display size | 800*480 16:9 inch TFT |
|---|
Read the manual carefully, set up the external safety circuit, do not dismantle the host computer shell or keyboard without permission, and follow the listed cautions before installation.
