PORCHESON TE118 User Manual V2.2

TE118 operation manual, introducing the product configuration, installation, key operation, parameter setting, system debugging and other contents

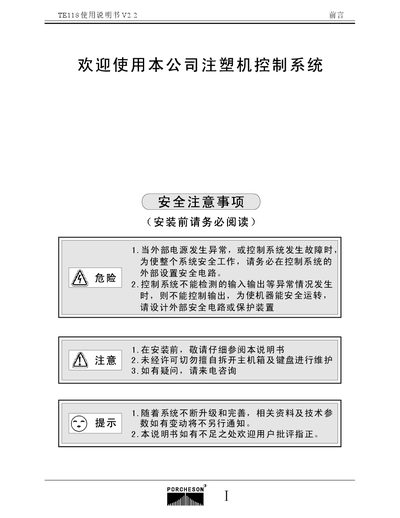

PORCHESON TE118 User Manual V2.2 - cover page
Brand
POROCHESON
Document type
User Manual
Language
Chinese
Pages
66
File format
PDF
File size
2.2 MB
Published
11 April, 2012
Updated
30 September, 2023
MD5 checksum
22971E3DF0CB42D6DAA0AB21883858C7
PDF
PORCHESON TE118 User Manual V2.2 PDF

About this manual

This manual introduces the TE118 control system, covering safety precautions that must be read before installation and the need for external safety circuits to protect the machine. It also outlines warranty limits and the company’s responsibility for system‑related faults.

The document details system configuration, hardware installation, key‑panel operation, parameter and function settings, production management, system debugging, and input/output status monitoring. Appendices provide wiring diagrams, dimension drawings and interference‑suppression tips. This manual is written in Chinese.

What's inside

  • Safety Precautions
  • System Configuration and Installation
  • Key‑Panel Operation
  • Parameter / Function Setting
  • Production Management
  • System Debugging Settings
  • Input/Output Status Detection
  • Appendix

Specifications

Control system modelPS860AM
Control system modelPS900AM
Power supplyPW600B 6008
Analog‑digital conversion8‑channel AD electronic ruler / pressure feedback
Digital‑analog output6‑channel standard DA, max 3 A output
Download PDF (2.2 MB)
