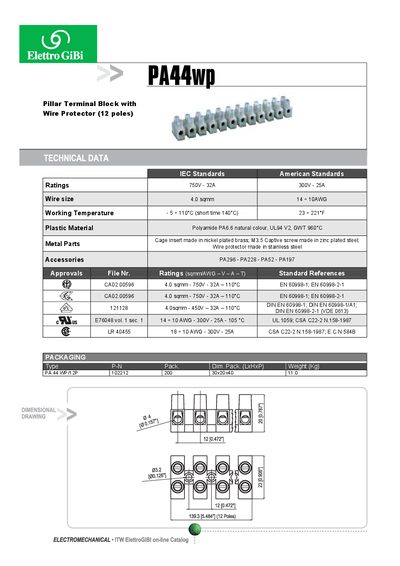

PA44wp 12 pole pillar terminal block with wire protector
The PA44WP is a pillar‑type terminal block with an integrated wire protector, offering 12 poles for secure connections. It is constructed from polyamide PA6.6 plastic and features metal parts such as a nickel‑plated brass cage insert, zinc‑plated steel captive screw, and a stainless‑steel wire protector.
The block is rated for 750 V and 32 A with a wire size of 4.0 sq mm, and it can operate up to 110 °C (short‑time up to 140 °C). It complies with IEC standards EN 60998‑1 and EN 60998‑2‑1, as well as UL 1059 and CSA C22‑2 approvals. Packaging dimensions are 30 × 20 × 40 mm and the unit weighs 11.0 kg.
| Number of poles | 12 |
|---|---|
| Voltage rating | 750 V |
| Current rating | 32 A |
| Wire size | 4.0 sq mm |
| Operating temperature | Up to 110 °C (short‑time 140 °C) |
| Plastic material | Polyamide PA6.6 |
| Metal parts | Nickel‑plated brass cage, zinc‑plated steel M3.5 screw, stainless‑steel wire protector |
| Standard references | EN 60998‑1, EN 60998‑2‑1 |
| Approvals | UL 1059, CSA C22‑2 N.158‑1987 |
| Package dimensions | 30 × 20 × 40 mm |
| Weight | 11.0 kg |
It is rated for 750 V and 32 A.
The block provides 12 poles.
The housing is made of polyamide PA6.6.
It can operate up to 110 °C, with a short‑time limit of 140 °C.
