GIGABYTE GV-N560SO-1GI GeForce GTX 560 Ti Graphics Card User Manual

This is the user manual of GV-N560SO-1GI graphics card released by GIGABYTE.

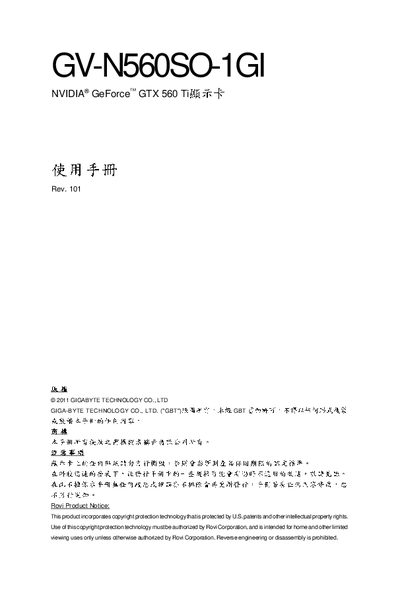

GIGABYTE GV-N560SO-1GI GeForce GTX 560 Ti Graphics Card User Manual - cover page
Brand
GV-N560SO-1GI
Category
Graphic Card
Document type
User Manual
Language
Chinese
Pages
36
File format
PDF
File size
2 MB
Published
11 April, 2012
Updated
30 September, 2023
MD5 checksum
9EF3A5720FA1B24EE7834E0444349A42
PDF
GIGABYTE GV-N560SO-1GI GeForce GTX 560 Ti Graphics Card User Manual PDF

About this manual

This manual introduces the GV-N560SO-1GI graphics card, detailing its key features such as PCI Express 2.0 support, 1 GB GDDR5 memory, DirectX 11, and dual‑link DVI‑I and mini‑HDMI outputs. System requirements, including a minimum 500 W power supply and compatible Windows operating systems, are also listed.

Step‑by‑step hardware installation guidance is provided, covering anti‑static precautions, PCI‑Express x16 slot insertion, and connector usage. The guide also explains driver installation, SLI configuration, troubleshooting tips, and includes an appendix with additional reference material. This manual is written in Chinese.

What's inside

  • Introduction
  • Hardware Installation
  • Driver Installation
  • SLI Configuration
  • Troubleshooting
  • Appendix

Specifications

PCI Express versionPCI Express 2.0
DirectX supportDirectX 11
Minimum power supply500 W
Recommended power supply for SLI650 W
Supported operating systemsWindows 7, Windows Vista, Windows XP

Frequently asked questions

Which operating systems are supported by this graphics card?

The card supports Windows 7, Windows Vista, and Windows XP.

How many DVI outputs does the card provide?

It provides two Dual‑Link DVI‑I digital outputs.
