This document describes the features and characteristics of the NVIDIA GeForce GTX 480/GTX 470 graphics card products produced by GIGABYTE TECHNOLOGY CO., LTD, including PCI Express 2.0 interface, GDDR5 3D memory, support for DirectX 11, NVIDIA SLI, etc.

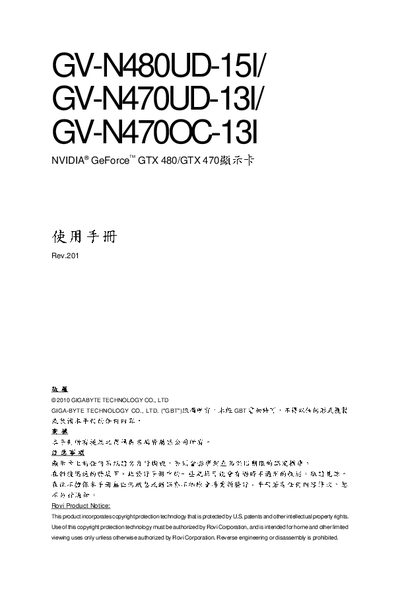

This manual provides detailed instructions for installing and configuring Gigabyte's GTX 480 and GTX 470 series graphics cards (models GV-N480UD-15I, GV-N470UD-13I, GV-N470OC-13I). It includes hardware diagrams, connector descriptions, BIOS update procedures, and guidance for building SLI configurations.
The document also lists system requirements such as power supply specifications, supported operating systems, and required motherboard features. Additional sections cover troubleshooting, resolution and color settings, and legal notices. This manual is written in Chinese.
| PCI Express version | PCI Express 2.0 |
|---|---|
| Memory (GV-N480UD-15I) | 1536 MB GDDR5 |
| Memory (GV-N470UD-13I) | 1280 MB GDDR5 |
| DirectX support | DirectX 11 |
| Digital video outputs | 2 x Dual‑Link DVI‑I, 1 x mini HDMI |
| Power supply (GV-N470UD-13I) | ≥1550 W, 12 V ≥ 38 A |
| Supported OS | Windows XP, Vista, 7 |
The card provides two Dual‑Link DVI‑I outputs and one mini HDMI output.
Windows XP, Windows Vista and Windows 7 are listed as supported operating systems.
