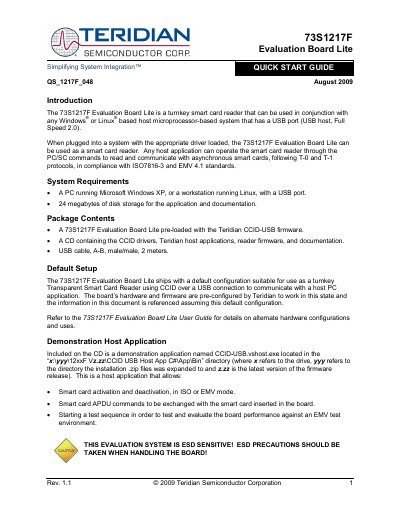

The 73S1217F Evaluation Board Lite is a turnkey smart card reader that can be used in conjunction with any Windows® or Linux® based host microprocessor-based system that has a USB port (USB host, Full Speed 2.0). When plugged into a system with the appropriate driver loaded, the 73S1217F Evaluation Board Lite can be used as a smart card reader. Any host application can operate the smart card reader through the PC/SC commands to read and communicate with asynchronous smart cards, following T-0 and T-1 protocols, in compliance with ISO7816-3 and EMV 4.1 standards.
The 73S1217F Evaluation Board Lite is a turnkey smart‑card reader that connects via USB to a Windows or Linux host. It comes pre‑loaded with Teridian CCID‑USB firmware and includes a CD with drivers, host applications, and documentation.
The guide explains system requirements, package contents, default configuration, and step‑by‑step driver installation for both Windows XP and Linux, plus usage of the demonstration host application.
| Supported operating systems | Microsoft Windows XP, Linux |
|---|---|
| USB interface | Full Speed 2.0 (USB host) |
| Minimum disk storage | 24 megabytes |
The board works with Microsoft Windows XP and Linux systems that have a USB port.
At least 24 MB of disk storage is needed.
It uses a Full Speed 2.0 USB host connection.
