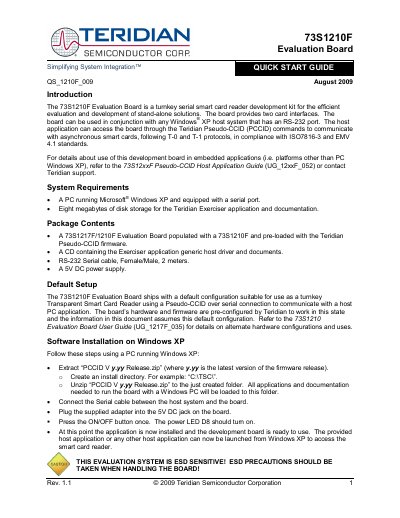

73S1210F Evaluation Board is a turnkey serial smart card reader development kit for the efficient evaluation and development of stand-alone solutions
The 73S1210F Evaluation Board is a turnkey serial smart‑card reader development kit that provides two card interfaces and communicates with a host PC via an RS‑232 serial port. It ships with pre‑loaded firmware, a CD containing the Exerciser application, a serial cable and a 5 V DC power supply.
The guide walks you through installing the PCCID driver on a Windows XP computer, connecting the board, powering it on, and using the supplied demonstration host application to activate cards, send APDU commands, and run test sequences. It also outlines how to integrate the board into an embedded system using the provided ANSI‑C driver source.
| Card interfaces | Two smart‑card interfaces |
|---|---|
| Host connection | RS‑232 serial port |
| Supported protocols | ISO7816‑3 and EMV 4.1 (T‑0, T‑1) |
| Operating system requirement | Microsoft Windows XP |
| Disk storage requirement | 8 MB |
| Power supply | 5 V DC |
| Default configuration | Transparent Smart Card Reader using Pseudo‑CCID over serial |
A PC running Microsoft Windows XP with a serial port is required.
The board is powered by a 5 V DC power supply that plugs into the board’s DC jack.
It provides two smart‑card interfaces and an RS‑232 serial connection to the host PC.
Yes, the board can be integrated into an embedded host processor using the supplied ANSI‑C pseudo‑CCID driver source code.
