This document introduces the features and characteristics of the XXX series products, including XXX, XXX, XXX, etc.

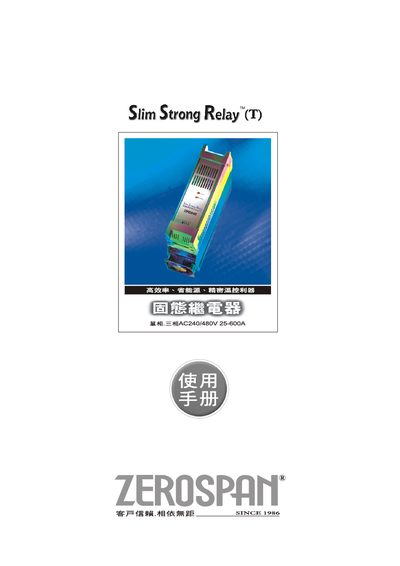

The Slim Strong Relay‑T series are solid‑state three‑phase AC relays designed for industrial heating, motor and other resistive or inductive loads. They are available for AC240 V or AC480 V systems with rated currents from 25 A up to 600 A and feature high‑capacity heat‑sink design, electronic over‑temperature protection and optional auxiliary power supplies.
This manual covers the operating environment, model identification, wiring and installation procedures, safety protections, LED status indicators, input current requirements and detailed mechanical dimensions. It also includes wiring diagrams, terminal block specifications and recommended mounting clearances. This manual is written in Chinese.
| Rated Voltage | AC240 V / AC480 V |
|---|---|
| Rated Current | 25 A – 600 A |
| Operating Temperature | -10 °C to +80 °C |
| Maximum Humidity | ≤ 93 % RH |
| Input Current (DC 6‑32 V) | 17 mA – 20 mA |
| Dimensions (25.35 A model) | 195 mm × 80 mm × 123 mm |
The relay can operate from –10 °C up to +80 °C.
Use the 6 mm screw terminals with wire size AWG12‑28; no separate terminal block is required.
The relay is rated for currents from 25 A up to 600 A depending on the model.
