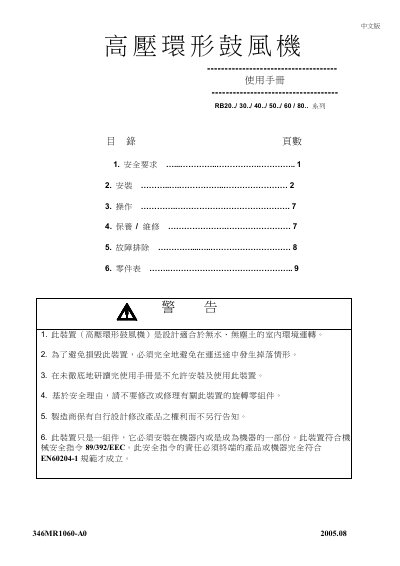

High pressure rotary blower instruction manual
This manual provides safety requirements, installation instructions, wiring diagrams, and operating procedures for the RB20/30/40/50/60/80 series high‑pressure ring drum blowers. It specifies the allowed operating environment, temperature limits, pressure limits, and required safety devices such as pressure‑relief valves and thermal protectors.
The document also includes maintenance guidelines, troubleshooting steps, and a detailed parts list for both single‑phase and three‑phase models. Electrical connection details, motor wiring, and grounding instructions are provided to ensure proper and safe installation. This manual is written in Chinese.
| Output power (kW) | 0.22/0.28 |
|---|
Turn off the power and wait for the blower to stop completely; inertia may cause the motor to continue rotating for a few minutes.
A pressure‑relief valve must be installed on the pressure line to prevent motor overload and overheating when operating above the rated pressure.
The ground wire must be securely connected to the ground terminal and must not be attached to gas pipes, water pipes, lightning rods, or telephone lines.
