Yida YF-4EIB Four Channel Thermocouple Board User Manual

The YF-4EI from Luoyang Yida Automation Research Institute is a four-channel thermocouple measurement board based on a bare board design. It has the characteristics of low cost and high performance. Each measurement board can connect 4 channels of K or E type thermocouples, and can be expanded up to 16 modules through cascading. The measurement board uses a standard SPI interface to output temperature values after linearization, and has an open interface. In addition, it also has built-in automatic compensation for thermocouple cold end and thermocouple open circuit alarm.

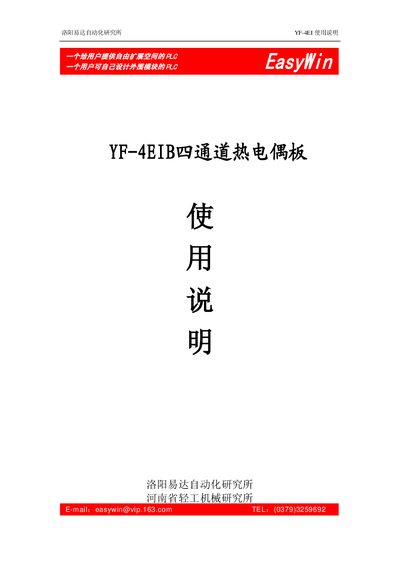

Yida YF-4EIB Four Channel Thermocouple Board User Manual - cover page
Brand
YF-4EIB
Category
Automation control Equipment
Document type
User Manual
Language
Chinese
Pages
7
File format
PDF
File size
224 KB
Published
10 April, 2012
Updated
29 September, 2023
MD5 checksum
69740FCA3E29488C28AAD16ED2F378FC

About this manual

The YF-4EIB is a bare‑board, four‑channel thermocouple measurement module (K, E types) that outputs linearized temperature values via a standard SPI interface. It can be cascaded to expand up to 16 modules.

The manual describes power connections, sensor wiring, SPI pin assignments, module address settings, sampling period options, and provides example PLC ladder‑logic code for reading temperature values. This manual is written in Chinese.

What's inside

  • 主要特点
  • 安装尺寸和端子
  • 模拟电源输入
  • 热电偶传感器输入
  • SPI接口 (IN)
  • SPI接口 (OUT)
  • 模块地址设置
  • 读入温度值
  • 程序示例

Specifications

Channel count4
Supported thermocouple typesK, E
Power supply+12 V (9 V‑26.4 V range)
Sampling period options1 s, 0.5 s, 0.1 s, 50 ms
Maximum cascade modules16
Module address range0‑13 (0 and 15 reserved)

Frequently asked questions

How many thermocouple channels does the YF-4EIB board have?

The board provides four independent thermocouple channels.

What sampling periods can be selected for temperature measurement?

You can choose 1 second, 0.5 second, 0.1 second or 50 ms sampling periods.

How is the module address configured?

The address is set with the four‑position DIP switch SW1, allowing values 0‑13 (0 and 15 are reserved).

What power voltage does the board accept?

The analog power input accepts +12 V with an allowable range of 9 V to 26.4 V.
