GV-N28-1GH-B NVIDIA GeForce GTX 280 Graphics card Manual

Introduces the features and characteristics of GV-N28-1GH-B, including graphics chip, graphics memory, interface, power consumption, compatibility and other information

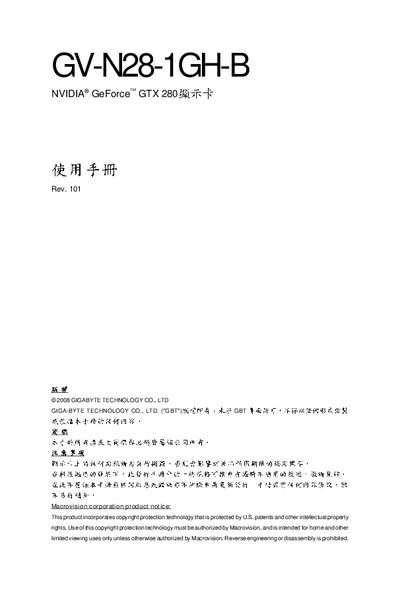

GV-N28-1GH-B NVIDIA GeForce GTX 280 Graphics card Manual - cover page
Brand
GV-N28-1GH-B
Category
Graphic Card
Document type
User Manual
Language
Chinese
Pages
46
File format
PDF
File size
3.5 MB
Published
10 April, 2012
Updated
30 September, 2023
MD5 checksum
28160A1DCCC027A45A63E634666E4D09
PDF
GV-N28-1GH-B NVIDIA GeForce GTX 280 Graphics card Manual PDF

About this manual

This manual covers the Gigabyte GV‑N28‑1GH‑B graphics card, based on the NVIDIA GeForce GTX 280 GPU. It describes the card's main features, system requirements, hardware installation, driver installation, and troubleshooting procedures.

The guide explains how to install the card, connect the required 8‑pin and 6‑pin PCI‑Express power connectors, configure display outputs (DVI‑I, HDMI, D‑Sub), and set up SLI configurations. It also lists recommended power supplies and provides a troubleshooting section for common issues. This manual is written in Chinese.

What's inside

  • 1. 简介
  • 1.1 主要特性
  • 1.2 系统需求
  • 2. 硬件安装
  • 2.1 显示卡的元件配置图
  • 2.2 硬件安装
  • 3. 安装驱动程序
  • 4. 疑难排除
  • 5. 附录

Specifications

InterfacePCI Express 2.0
DirectX supportDirectX 10
DVI‑I outputs10
HDMI outputYes (requires adapter)
Minimum power supply500 W (12 V, 36 A minimum)

Frequently asked questions

How many DVI‑I outputs does the card have?

It provides ten DVI‑I digital output connectors.

What is the minimum system memory recommended for this card?

A minimum of 512 MB of system memory is required, with 2 GB recommended for best performance.
