This is a user manual for a high pressure cleaner, which introduces the product features, usage methods, precautions, etc.

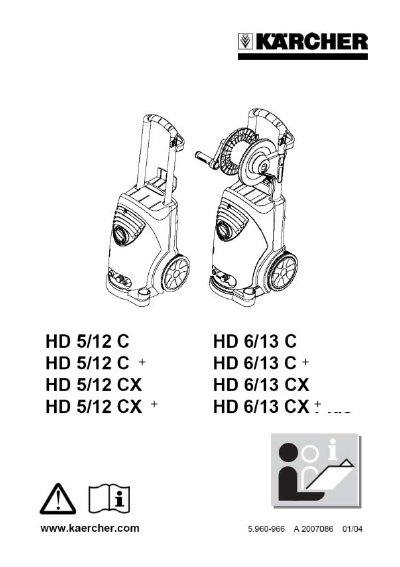

This manual describes the components of the Karcher HD 5/12 C high‑pressure cleaner, safety features, and preparation steps before first use. It covers unpacking, oil‑pressure checks, hose and accessory installation, and electrical and water connections.
Further sections explain how to start and operate the machine, select spray types, perform regular maintenance, troubleshoot common problems, and replace parts. Technical specifications for pressure, flow, power, and noise are listed at the end of the document. This manual is written in Chinese.
| Power input | 2.2 kW |
|---|---|
| Maximum working pressure | 12 MPa (120 bar) |
| Water flow rate | 500 L/h (8.3 L/min) |
| Noise level | 74 dB(A) |
| Oil type for pump | SAE 15W/40 |
When the machine is stationary, read the oil‑pressure value on the display; the oil level must be above two marks.
The safety valve opens when the pressure/flow control reduces flow, allowing water to return to the pump suction side.
The filter in the water connector should be cleaned regularly, as described in the maintenance section.
Rinse the hose and filter with clean water, run the machine with clean water for one minute, then store it in a frost‑free location.
