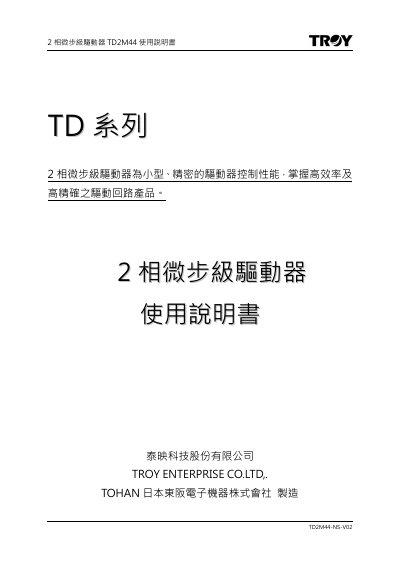

TD2M44 User Manual is the user manual of TD2M44 driver. It details the specifications, names and wiring diagrams of the driver, function switch instructions, current adjustment instructions, applicable motors, precautions, and external dimensions.
This manual describes the TD2M44 2‑phase microstep driver, including its electrical specifications, wiring diagrams, and functional settings. It also lists safety precautions, applicable stepper motors, and physical dimensions.
The document is organized into sections covering specifications, part names and wiring, function switch description, current adjustment, compatible motors, precautions, and a dimensions diagram, allowing technicians and users to set up and operate the driver safely. This manual is written in Chinese.
| Model | TD‑2M44 |
|---|---|
| Power Supply Voltage | DC 12 V ~ 40 V |
| Drive Current per Phase | 1 A ~ 4 A |
| Microstep Division | 1/1 ~ 1/500 |
| Output Current | 100 mA |
| Output Saturation Voltage | < 1.5 V at 100 mA |
| Maximum Switching Frequency | 500 kpps |
| Dimensions (W×D×H) | 84 mm × 63 mm × 19 mm |
| Weight | 150 g |
| Maximum Relative Humidity | ≤ 85 % RH |
The maximum response time is 10 ms.
