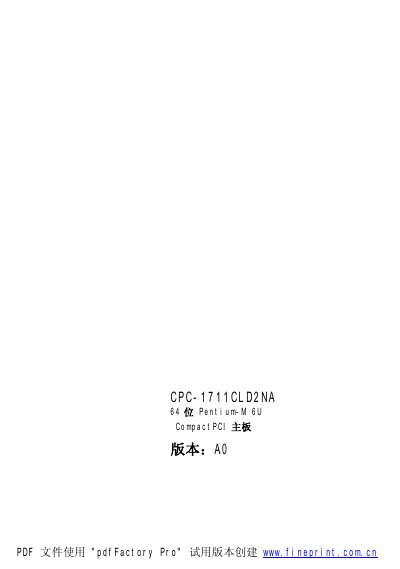

CPC-1711CLD2NA 64 bit Pentium-M 6U CompactPCI Motherboard product introduction
The EVOC CPC-1711CLD2NA is a 64‑bit Pentium‑M 6U CompactPCI motherboard designed for high‑end applications such as networking, industrial control, and military use. It supports a 400 MHz FSB Intel Pentium M CPU, 512 MB onboard memory (expandable to 1 GB), and integrates Intel 855GME graphics with a VGA output.
The manual provides a complete parts list, safety guidelines, detailed installation steps, BIOS feature overview, and appendices covering watchdog programming, I/O address mapping, and IRQ assignments. It also includes configuration tables for storage, networking, and peripheral interfaces. This manual is written in Chinese.
| CPU | Intel Pentium M 64‑bit, 400 MHz FSB |
|---|---|
| Memory | 512 MB onboard, expandable to 1 GB |
| Chipset | Intel 855GME + Intel 6300ESB |
| Graphics | Integrated Intel 855GME VGA controller |
| Storage Interfaces | 2 × PATA/100, 1 × SATA/150 |
| Ethernet | 2 × GbE via PCI‑X |
| USB Ports | 4 × USB 2.0 Host |
| Serial Ports | 2 × COM, PS/2 keyboard/mouse |
| Dimensions | 233 mm × 160 mm (board size) |
The package contains one CPC-1711CLD2NA board, a user manual, an AMI BIOS setup guide, a mini‑DIN to PS/2 keyboard/mouse cable, a serial cable, an IDE cable, a display connector cable, an EVOC software CD, and a spare jumper cap.
