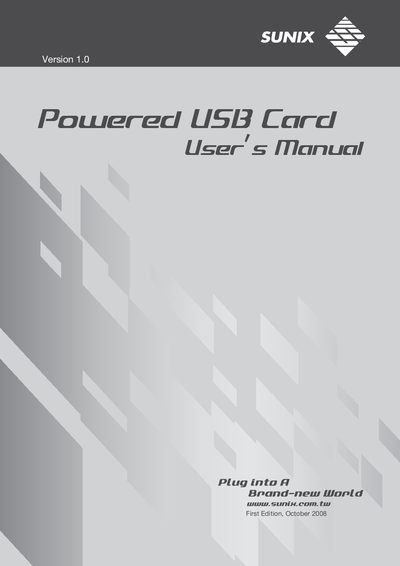

This manual introduces the features and usage of SUNIX's Powered USB Card product.
This manual provides all the information needed to install and use the Sunix Powered USB PCI Card. It covers hardware installation, driver setup, power specifications, and troubleshooting steps for the four external Powered USB ports and one internal USB port.
The card supplies +5 V, +12 V and +24 V power directly from the PC’s power supply, supports USB 2.0 data rates up to 480 Mbps, and complies with RoHS, CE and FCC Class B regulations. It is compatible with Windows, Linux and macOS operating systems.
| Interface | Universal Serial Bus 2.0 |
|---|---|
| Controller | NEC UPD720102 |
| Internal Power Output | +5 VDC (1 port, max 0.5 A) |
| Data Transfer Rate | 1.5 Mbps, 12 Mbps, 480 Mbps |
| Operating Temperature | 0 °C to 60 °C (32 °F to 140 °F) |
| Storage Temperature | -20 °C to 85 °C (-4 °F to 185 °F) |
| PCB Dimension | 130 mm × 100 mm |
| Regulatory Compliance | RoHS, CE, FCC Class B |
It supplies +5 V, +12 V and +24 V power on its external ports, with specific current limits per port.
The card has four external Powered USB ports and one internal standard USB port.
The card operates from 0 °C to 60 °C (32 °F to 140 °F).
