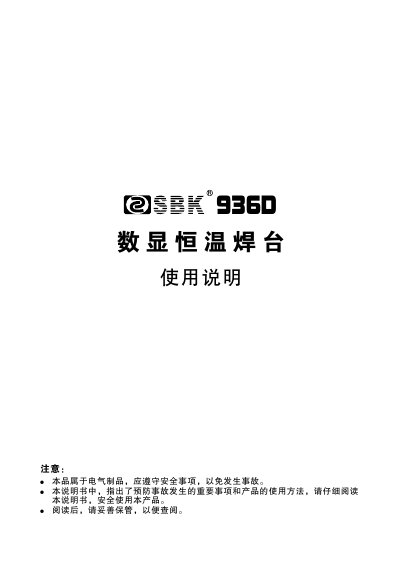

This document is the manual of 936D digital display constant temperature welding station, introducing the assembly, use methods and precautions.
This manual explains safety precautions for the Bakon 936D soldering station, including warnings about high temperatures, proper handling of the iron tip, and the need to keep the work area well‑ventilated. It also lists the contents of the packaging and the specifications of the unit.
The guide details how to connect the iron, set the desired temperature (180‑450 °C) using the UP/DOWN keys, adjust the correction value, interpret the display indicators, maintain and clean the soldering tip, and diagnose common faults such as fuse failure or heater element problems. This manual is written in Chinese.
| Power supply voltage | 220V 50Hz AC |
|---|---|
| Output voltage | AC9V and AC24V |
| Power rating | 55W |
| Temperature range | 180–450 °C |
| Dimensions (W×H×D) | 115 mm × 90 mm × 140 mm |
| Weight (without handle) | 1 kg |
| Tip‑to‑ground resistance (factory value) | ≈2 Ω |
| Tip‑to‑ground potential (factory value) | ≈2 V |
| Heater element model | BK1322 |
| Cable length | 1.5 m |
| Temperature error | ±3 °C |
