This document describes the steps and precautions for replacing the heating element, including loosening the nut, setting the temperature, and welding the heating element and sensor leads. After replacing the heating element, temperature recalibration is required. The wire device and sensor are also measured and inspected.

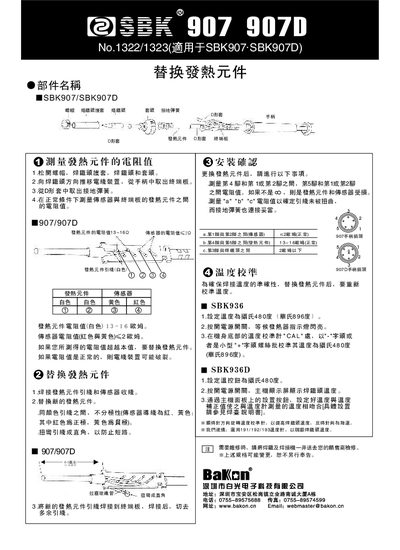

This manual explains how to safely replace the heating element and sensor of Bakon SBK907/907D (and compatible SBK936/936D) soldering irons. It covers disassembly, lead soldering, resistance checks, and temperature recalibration.
The document also provides the normal resistance values for the heating element (13‑16 Ω) and sensor (≤2 Ω), wiring instructions, and troubleshooting tips for broken cord assemblies. This manual is written in Chinese.
| Heating element resistance | 13‑16 Ω |
|---|---|
| Sensor resistance | ≤2 Ω |
| Heating element lead length | 64 mm (2.52 in) |
Set the temperature control knob to 480 °C (896 °F) before starting the replacement.
The heating element should read 13‑16 Ω and the sensor should read 2 Ω or less.
Adjust the temperature calibrator (marked CAL) with a small screwdriver until the tip temperature reads 480 °C.
