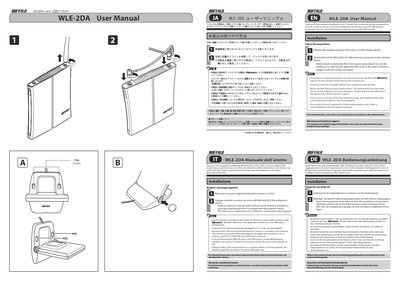

This document is the user manual for WLE-2DA, which provides instructions on installation and usage of the product. The WLE-2DA is a directional antenna designed for 2.4 GHz access points and other wireless devices with two RP-SMA antenna connections. It can be connected to the wireless device and can be mounted on a flat surface or wall using the provided screws.
This manual provides step‑by‑step instructions for installing the Buffalo WLE‑2DA directional antenna on any 2.4 GHz wireless device. It covers removal of existing antennas, attachment of the RP‑SMA connectors, and wall‑mounting with the included screws.
Technical specifications are listed, including frequency range, VSWR, gain, operating temperature, humidity, dimensions and weight. Warranty and technical support information is also provided, with a reference to the Buffalo website for compatible products.
| Frequency Range | 2412~2472 MHz (1~13 ch) |
|---|---|
| VSWR | ≤ 1.5 |
| Total Gain | ≥ 5 dBi |
| Operating Temperature | 0 °C – 40 °C |
| Operating Humidity | 20 % – 80 % (non‑condensing) |
| Weight | 240 g (7.7 oz) |
The antenna provides an absolute gain of at least 5 dBi.
