The RHR4000 series is a high-performance secure router launched by Ronghe Network. It has powerful data processing capabilities and rich firewall functions. It supports various mainstream broadband access technologies and adopts a 64-bit multi-core high-speed processor and RHOS operating system, which can meet user's internet needs and ensure network security.
The RHR4000 series from Union Net provides a 64‑bit multi‑core processor running at 500 MHz, supporting up to 800 Kpps NAT throughput. It offers multiple WAN/LAN ports, USB and console interfaces, and advanced security functions such as VPN, firewall, and DDoS protection.

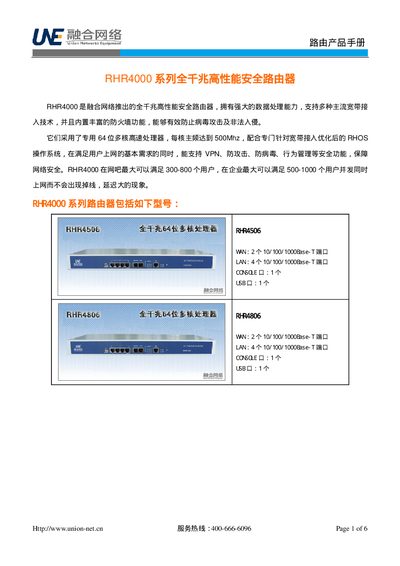

Designed for small‑to‑medium enterprises, the routers operate in temperatures from 0 °C to 40 °C, humidity 10‑85 %, and consume up to 20 W. Physical dimensions are 442 mm × 207 mm × 44 mm, and power input is 170‑264 V AC at 1 A. This manual is written in Chinese.
| WAN ports | 2 × 10/100/1000Base‑T |
|---|---|
| LAN ports | 4 × 10/100/1000Base‑T |
| Console port | 1 |
| Maximum power consumption | 20 W |
| Dimensions | 442 mm × 207 mm × 44 mm |
| Operating temperature / humidity | 0 °C‑40 °C, 10‑85 % RH |
| Supported VPN protocols | L2TP, PPTP, GRE, IPIP, TPSEC |
It supports L2TP, PPTP, GRE, IPIP and TPSEC VPN protocols.
The RHR4506 has two WAN ports that are 10/100/1000Base‑T.
The router consumes up to 20 W of power.
It includes protection against TCP SYN, UDP, ICMP and ARP flooding.
