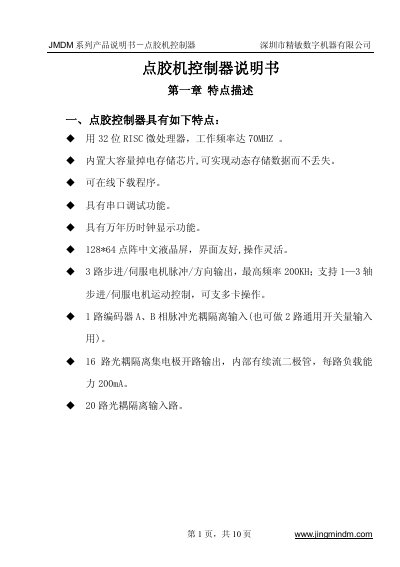

JMDM series of dot gluer controller manual, introduces the product's characteristics, key instructions, running screen, manual screen, teaching screen and other content
The JMDM series controller is built around a 32‑bit RISC processor running at 70 MHz and includes a 128×64 dot‑matrix LCD, 3 step/servo motor pulse‑direction outputs (up to 200 kHz) and extensive I/O with 16 isolated open‑collector outputs and 20 isolated inputs.
The manual describes the operating screens, button functions, teaching procedures, parameter settings, diagnostic functions and electrical specifications, as well as safety and environmental guidelines for proper use of the dispensing machine controller. This manual is written in Chinese.
| Processor | 32‑bit RISC, 70 MHz |
|---|---|
| Display | 128×64 dot‑matrix LCD (Chinese) |
| Motor Outputs | 3 pulse/direction outputs, up to 200 kHz |
| Isolated Outputs | 16 open‑collector outputs, 200 mA per channel |
| Isolated Inputs | 20 opto‑isolated input channels |
| Power Supply (no D/A) | AC 220 V → DC +5 V, 3 A |
| Power Supply (with D/A) | AC 220 V → DC +5 V, ±12 V, 0.5 A |
| Pulse/Direction Output Voltage | 5 V differential |
| Input Voltage Range | 5‑24 V |
| Isolation Voltage | 2500 V DC |
| Operating Temperature | 0 °C – 60 °C |
| Operating Humidity | 20 % – 95 % |
Press the ‘9’ key; the motor first returns to the origin and then to the start point.
Press the ‘停止’ button to pause the machining action.
Up to 200 points per product, with a maximum of 10 start‑point entries.
Use an AC 220 V source; the internal supply provides DC +5 V at 3 A (and ±12 V, 0.5 A when D/A output is used).
