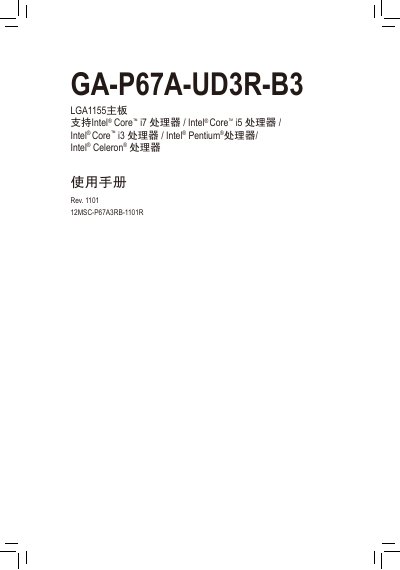

The GA-P67A-UD3R-B3 LGA1155 motherboard supports Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors / Intel® Pentium® processors / Intel® Celeron® processors. This manual provides information about the features and characteristics of the motherboard.
This manual provides step‑by‑step instructions for installing the GA‑P67A‑UD3R‑B3 motherboard, including CPU, memory, storage and expansion cards. It also explains BIOS configuration, driver installation, and unique Gigabyte features such as Xpress Recovery and Dynamic Energy Saver.
Additional sections cover hardware specifications, audio and network settings, USB and SATA interfaces, and warranty information. The document is intended for end users and system builders who need detailed guidance on setting up and maintaining the board. This manual is written in Chinese.
| CPU Socket | LGA1155 |
|---|---|
| Supported Processors | Intel® Core i7, i5, i3, Pentium, Celeron |
| Memory Slots | 4 DDR3 DIMM slots (max 32 GB) |
| Supported Memory Types | DDR3 2133/1866/1600/1333/1066 MHz, non‑ECC, XMP |
| Audio Codec | Realtek ALC892/889 |
| Network Controller | Realtek RTL8111E (10/100/1000 Mbit) |
It supports Intel® Core i7, i5, i3, Pentium and Celeron processors for the LGA1155 socket.
The board has four DDR3 DIMM slots, allowing up to 32 GB of memory.
Two USB 3.0/2.0 ports are available on the motherboard.
