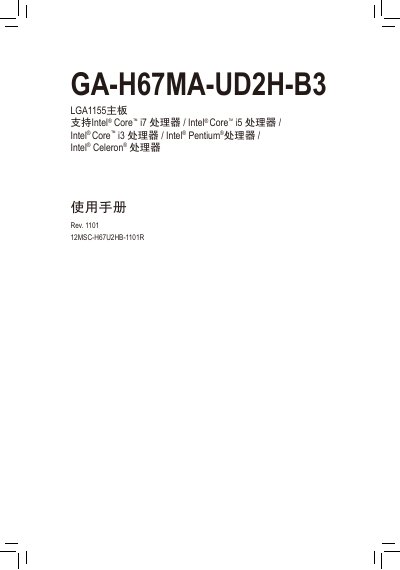

The GA-H67MA-UD2H-B3 LGA1155 motherboard supports Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors. The manual includes hardware installation guide and detailed product specifications.
This manual explains how to install and configure the GA-H67MA-UD2H-B3 motherboard. It covers safety precautions, CPU and cooler mounting, memory installation, expansion card fitting, and rear I/O connector connections.
The document also details BIOS configuration options, driver installation, unique Gigabyte features such as Q-Flash BIOS updates and Smart 6, and includes an appendix with troubleshooting tips, warranty information, and service contacts. This manual is written in Chinese.
| CPU socket | LGA1155 |
|---|---|
| Supported CPUs | Intel® Core i7 / i5 / i3, Pentium®, Celeron® |
| Chipset | Intel® H67 |
| Memory slots | 4 DDR3 DIMM slots (max 32 GB) |
| Memory type | DDR3 1333/1066/800 MHz, non‑ECC |
| Dual‑channel memory | Supported |
| Network controller | Realtek RTL8111E 10/100/1000 Mbit |
It provides four DDR3 DIMM slots that can support up to 32 GB of memory.
The board uses an LGA1155 socket for Intel processors.
