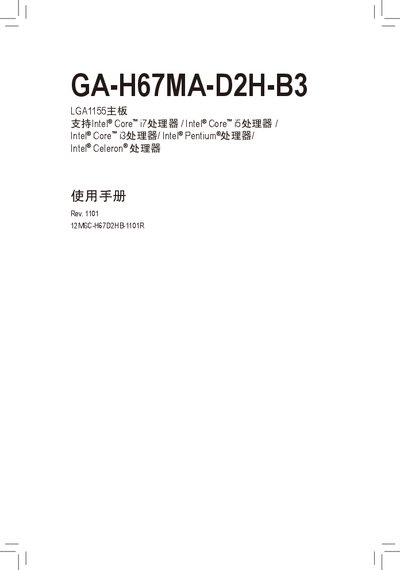

GA-H67MA-D2H-B3 LGA1155 motherboard user manual. This manual introduces the functions, installation methods and BIOS settings of the motherboard.
This manual covers everything needed to install and operate the GA-H67MA-D2H-B3 motherboard. It includes a detailed parts list, board layout diagrams, and step‑by‑step hardware installation instructions for the CPU, memory, and expansion cards.
Additional sections describe BIOS configuration, driver installation, unique Gigabyte features such as Xpress Recovery2 and EasyTune 6, and a comprehensive troubleshooting appendix. The document also contains warranty information and contact details for Gigabyte support. This manual is written in Chinese.
| CPU socket | LGA1155 |
|---|---|
| Supported CPUs | Intel® Core i7 / i5 / i3, Pentium, Celeron |
| Chipset | Intel® H67 |
| Memory slots | 2 DDR3 DIMM slots, up to 16 GB |
| Memory type | DDR3 1333/1066/800 MHz, non‑ECC, dual‑channel |
| PCI Express slots | 1 x16 (x16), 1 x16 (x4), 2 x1 |
| SATA ports | 2 × 6 Gb/s, 3 × 3 Gb/s, 1 × eSATA 3 Gb/s |
| Network controller | Realtek RTL8111E 10/100/1000 Mbit |
| Audio codec | Realtek ALC892/889, HD Audio, 2/4/5.1/7.1 channels, S/PDIF out |
| Video outputs | D‑Sub, DVI‑D (max 1920×1200), HDMI (max 1920×1200) |
It supports Intel® Core i7, i5, i3, Pentium, and Celeron processors for the LGA1155 socket.
The motherboard has two DDR3 DIMM slots that can hold up to 16 GB of memory, supporting dual‑channel operation.
A Realtek RTL8111E chip provides 10/100/1000 Mbit Ethernet connectivity.
It offers two SATA 6 Gb/s ports, three SATA 3 Gb/s ports, and one eSATA 3 Gb/s port, supporting RAID 0/1/5/10.
