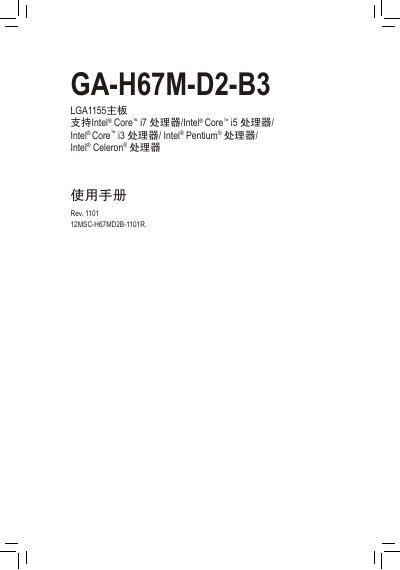

GA-H67M-D2-B3 LGA1155 motherboard supports Intel® Core™ i7 / Intel® Core™ i5 / Intel® Core™ i3 / Intel® Pentium® / Intel® Celeron® processor. This manual introduces how to install and use the motherboard.
This manual provides step‑by‑step instructions for installing the GA‑H67M‑D2‑B3 motherboard, configuring the BIOS, and installing drivers. It also describes the board’s unique features such as Xpress Recovery, Cloud OC and Smart 6.
The document includes hardware installation guidelines, detailed specifications, troubleshooting tips and contact information for Gigabyte technical support worldwide. This manual is written in Chinese.
| CPU Socket | LGA1155 |
|---|---|
| Chipset | Intel H67 |
| Memory Slots | 2 DDR3 DIMM slots, up to 16 GB |
| Audio Codec | Realtek ALC888B/889, HD Audio 2/4/5.1/7.1 |
| Network Interface | Realtek RTL8111E 10/100/1000 Mbit |
| USB Ports | Up to 14 × USB 2.0/1.1 (8 rear, 6 internal) |
It supports Intel Core i7, i5, i3, Pentium and Celeron processors for the LGA1155 socket.
The board has two DDR3 DIMM slots and can accommodate up to 16 GB of memory.
