GA-H67M-UD2H-B3 LGA1155 motherboard Manual

GA-H67M-UD2H-B3 LGA1155 motherboard supports Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/ Intel® Pentium® processors/ Intel® Celeron® processors User Manual

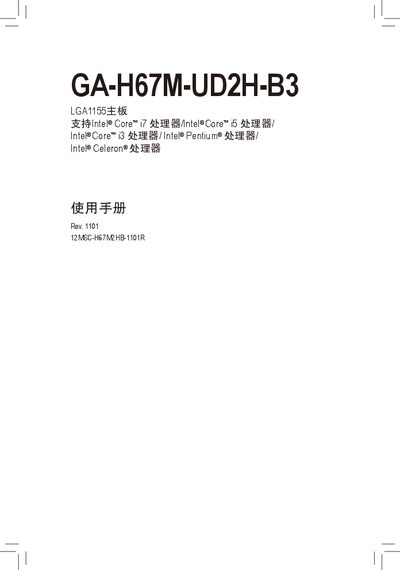

GA-H67M-UD2H-B3 LGA1155 motherboard Manual - cover page
Brand
GA-H67M-UD2H-B3
Category
Motherboard
Document type
User Manual
Language
Chinese
Pages
104
File format
PDF
File size
25.7 MB
Published
09 April, 2012
Updated
30 September, 2023
MD5 checksum
D5A385408309DE8EEAEFDD2BE67FA119
PDF
GA-H67M-UD2H-B3 LGA1155 motherboard Manual PDF

About this manual

This manual covers the complete hardware installation process for the GA-H67M-UD2H-B3 LGA1155 motherboard, including CPU, memory, expansion cards, rear I/O connectors and jumpers. Detailed BIOS configuration steps and driver installation instructions are also provided.

Additional sections address troubleshooting, warranty service, and contact information for Gigabyte technical support worldwide. This manual is written in Chinese.

What's inside

  • Hardware Installation
  • CPU Installation
  • Memory Installation
  • Expansion Card Installation
  • Rear I/O Connectors
  • Jumpers
  • BIOS Setup
  • Driver Installation
  • Troubleshooting
  • Warranty and Service

Specifications

CPU SocketLGA1155
Supported MemoryDDR3 1333/1066/800 MHz, Dual Channel
USB Ports14 × USB 2.0

Frequently asked questions

How can I update the BIOS using Q‑Flash?

Use the Q‑Flash utility in the BIOS to perform a quick BIOS repair or update.

Where can I find warranty and service information for this motherboard?

Warranty details are provided on the Gigabyte motherboard warranty card included with the product.

Download PDF (25.7 MB)
