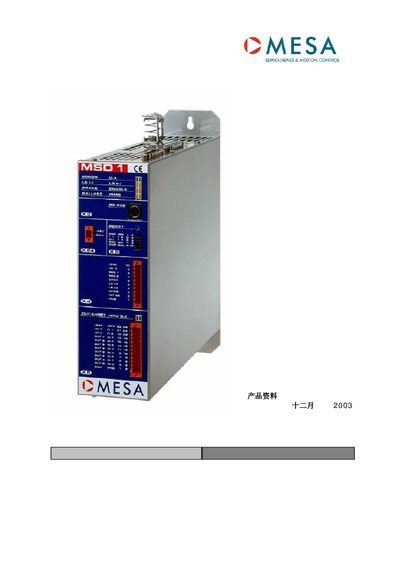

mesa servo drive msd1/a product documentation, introduces the product features and characteristics, including compact design, easy installation, 230 or 400v ac power supply, internal power filter, dc bus connection, optional analog input, internal brake module including power resistor, encoder or rotary encoder, logic circuit board can be flexibly configured according to user needs, direct brake control through smart switch (via can bus), temperature control fan, external or internal +24v supply, etc.
This manual covers the technical data, safety information, and installation steps for the MESA MSD1/A servo drive. It includes details on power ratings, environmental limits, and mechanical dimensions.
The document also describes the communication interfaces (RS‑232, CAN, PWM), parameter settings, and troubleshooting guidelines to help users configure and maintain the drive in industrial applications.
| Operating temperature range | -10 °C to +60 °C |
|---|---|
| Dimensions (HxBxT) | 320 × 72 × 255 mm |
The drive measures 320 mm × 72 mm × 255 mm (HxBxT).
The device operates from –10 °C up to +60 °C.
