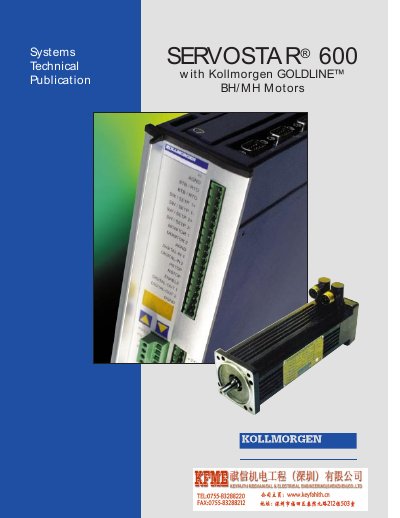

This document is a technical manual for Kollmorgen SERVOSTAR® 600, a compact, fully digital drive-amplifier designed to simplify installation, system set- up, and system reliability.
The SERVOSTAR 600 is a compact, fully digital drive‑amplifier designed for easy installation and reliable system performance. It supports 400‑480 V three‑phase AC input, offers five current‑rating options, and includes integrated power supply, digital control loops, and extensive safety protections.
The manual covers motion capabilities, connector layouts, optional I/O cards, detailed amplifier specifications, ordering information, and the MotionLink Windows software for configuration, tuning, and diagnostics. Communication interfaces include RS‑232, RS‑485, and configurable analog/digital I/O, enabling integration with PLCs, PCs, and other control systems.
| Input Power | 400‑480 V three‑phase AC |
|---|---|
| Current Rating Options | 3, 6, 10, 14, 20 A RMS/phase |
| Velocity Bandwidth | up to 400 Hz |
| Switching Frequency | 8 kHz |
It accepts 400 to 480 V three‑phase AC input.
There are five current‑rating options: 3, 6, 10, 14, and 20 A RMS per phase.
Up to 180 motion tasks can be stored in permanent memory.
The device supports RS‑232, RS‑485, and configurable analog and digital I/O.
