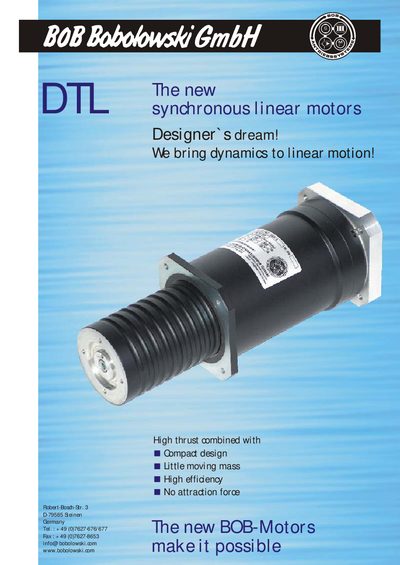

The document introduces the features and characteristics of the new BOB-Motors products, including high thrust, compact design, little moving mass, high efficiency, and no attraction force. These synchronous linear motors are referred to as a designer's dream, bringing dynamics to linear motion.
The BOB DTL85 series are synchronous linear motors designed for short‑stroke applications such as Z‑axes of drilling‑ and milling‑machines or X‑Y tables. They feature a bearing‑less design, water cooling, high thrust‑to‑weight ratio and low attraction force.
The leaflet provides detailed specifications for each variant, including force, speed, current, mass and cooling requirements, as well as ordering codes, connection details and mechanical dimensions. This manual is written in German.
| Max. permitted input voltage | 700 V |
|---|---|
| Force (Cu:20°C) | 144 N |
| Continuous force (Cu:130°C) | 120 N |
| Maximum speed | 2.57 m/s |
| Total mass | 2.4 kg |
The maximum permitted input voltage is 700 V.
The continuous force at 20 °C is 144 N.
The maximum speed is 2.57 m/s.
