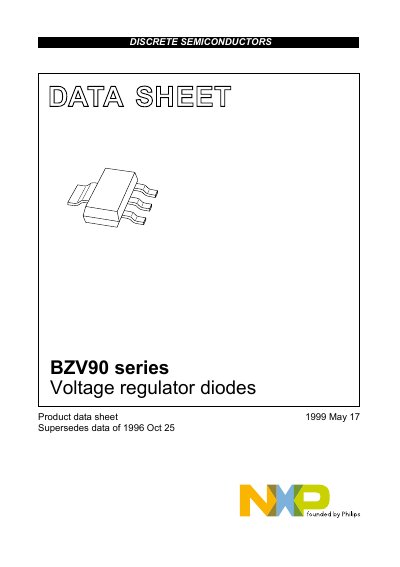

BZV90 series is a medium power voltage regulator diode from NXP Semiconductors. The series offers a working voltage range of 2.4 to 75 V, a rated power dissipation of 1500 mW, and can be adjusted to conduct continuous forward currents in the range of -400 mA to 40 A. In addition, the series has a non-repetitive peak reverse current of 40 W.
The BZV90 series consists of medium‑power voltage regulator diodes available in SOT‑223 surface‑mount packages. The series offers 37 types with nominal working voltages ranging from 2.4 V to 75 V and a total power dissipation of up to 1500 mW per device.
The datasheet provides electrical and thermal characteristics, limiting values, package dimensions, and regulatory information. It also includes graphical data such as forward‑voltage curves and temperature‑coefficient plots, as well as legal and export‑control notices from NXP Semiconductors.
| Maximum continuous forward current | 400 mA |
|---|---|
| Working voltage range | 2.4 V to 75 V |
| Storage temperature range | -65 °C to +150 °C |
| Maximum junction temperature | 150 °C |
The maximum continuous forward current is 400 mA.
The series covers nominal working voltages from 2.4 V to 75 V.
