The MWH-10 meter provides high precision measurement, display and remote communication functions for active watt-hour and active power. It can also be equipped with 2 relay outputs, 2 external control inputs and 1 RS485 communication output (Modbus RTU Mode) or 1 pulse output interface, making it suitable for a variety of applications such as power management, remote input and output, alarm and remote communication control.
The ADTEK MWH-10 is a digital energy meter that provides high‑accuracy measurement of active energy (Wh) and active power (W). It features dual‑window display, optional RS485 Modbus RTU communication, pulse output, and two configurable relay outputs for remote monitoring and control.

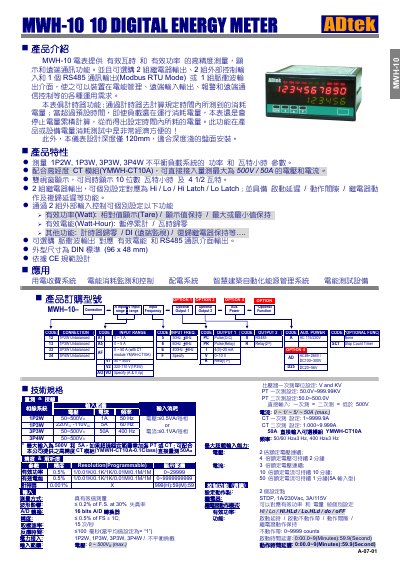

The manual describes product features, wiring diagrams, configuration options, timer function, error messages, and safety specifications, enabling users to install the meter in shallow‑depth DIN panels and integrate it into energy management or building automation systems. This manual is written in Chinese.
| Measurement range (unbalanced loads) | 1P2W, 1P3W, 3P3W, 3P4W |
|---|---|
| Voltage input range | 0 ~ 500 V (max) |
| Current input range | 0 ~ 50 A (max) |
| Accuracy | ≤ 0.5 % of FS ± 1 °C |
| Display | Dual‑window, 10‑digit Wh and 4.5‑digit W |
| Communication interface (optional) | RS485 Modbus RTU |
| Relay outputs | 2 groups, configurable (Hi/Lo/Hi‑Latch/Lo‑Latch) |
| Power supply | AC 115/230 V 50/60 Hz (optional DC 20‑56 V or AC/DC 85‑264 V) |
| Dimensions (DIN mounting) | 96 mm × 48 mm × 120 mm |
The meter offers an optional RS485 Modbus RTU port and an optional pulse‑output interface for remote data transmission.
The meter measures 96 mm wide, 48 mm high and 120 mm deep, fitting standard DIN panels.
The device provides an accuracy of 0.5 % of full scale, with a temperature coefficient of ±1 °C.
