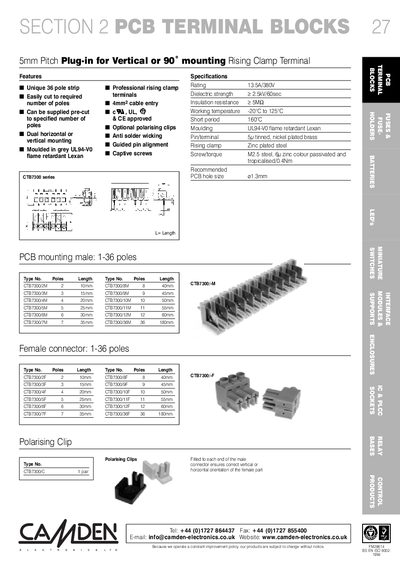

CTB7300 series 5mm pitch plug-in for Vertical or 90˚ mounting Rising Clamp Terminal
The CTB7300 series provides 5 mm pitch plug‑in terminal blocks for vertical or 90° mounting. They are available in male and female configurations with 1‑36 poles, and can be supplied pre‑cut to the required number of poles. Optional polarising clips ensure correct orientation.
These terminal blocks are rated for 13.5 A/380 V, have a dielectric strength greater than 2.5 kV/60 s, insulation resistance over 5 MΩ, and operate from –20 °C to 125 °C. They are UL94‑V0 flame‑retardant, made from zinc‑plated steel with tin‑ and nickel‑plated brass pins, and are CE approved.
| Pitch | 5 mm |
|---|---|
| Current rating | 13.5 A / 380 V |
| Dielectric strength | > 2.5 kV / 60 s |
| Insulation resistance | > 5 MΩ |
| Operating temperature | -20 °C to 125 °C |
| Flame retardant rating | UL94‑V0 |
| Material (body) | Zinc plated steel |
| Pin plating | Tin, nickel plated brass |
They are rated for 13.5 A at 380 V.
The blocks can be used from –20 °C up to 125 °C.
Yes, they can be supplied pre‑cut to the required number of poles.
