The ebm range of Plate Axial fans is based around the ebm Werke external rotor motor and an aerodynamically designed impeller to provide a very compact, efficient unit.
The ebm Single Phase axial fans are built around the ebm Werke external rotor motor with an aerodynamically designed impeller, offering a compact and efficient unit. Key features include pressed steel blades with low‑noise sickle design, sealed‑for‑life bearings, and corrosion‑resistant coating.

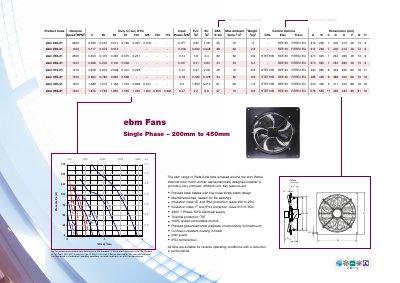

The handbook lists detailed technical specifications, performance data measured to DIN standards, and dimensions for each fan size. It also covers electrical supply requirements, insulation classes, IP ratings, and speed‑control options.
| Insulation class (200‑250 mm) | B |
|---|---|
| Insulation class (315‑450 mm) | F |
| IP rating (terminal box) | IP54 |
| Electrical supply | 230 V, 1 Phase, 50 Hz |
| Speed control | 100 % speed controllable |
Fans sized 200‑250 mm have insulation class B, while those sized 315‑450 mm have insulation class F.
They operate on a 230 V, single‑phase, 50 Hz electrical supply.
Yes, the fans feature 100 % speed‑controllable motors.
