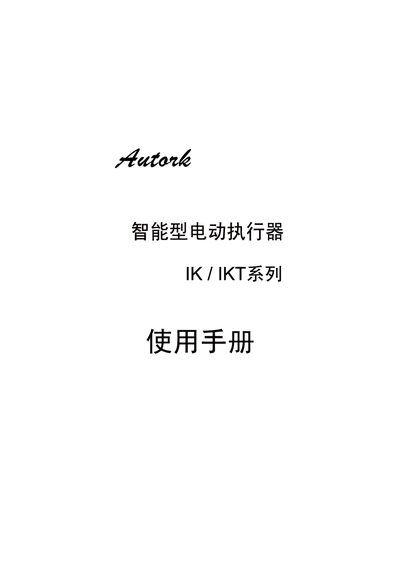

This manual describes the operation of the Autork IK/IKT series electric actuators, including on‑site display indicators, alarm icons, and the procedures for setting parameters such as travel limits and torque. It also covers safety information, IP67 protection, explosion‑proof certification, and power source details.
Key sections include detailed explanations of indicator lights, alarm conditions, password‑protected setting functions, lubrication oil specifications, weight data, and troubleshooting guidance. The document is intended for installers, technicians, and end users who need to configure and maintain the actuators. This manual is written in Chinese.
| Ingress Protection | IP67 |
|---|---|
| Explosion Protection | Ex ia IIC T4 |
| Power Source | Battery (provided and installed) |
| Operating Distance | 0.75 m |
| Lubricating Oil Type | SAE 80EP |
The red light indicates that the valve is fully open.
Enter the setting program, use the default password 33, then set a new password (e.g., 68) using the password keys.
The actuator is filled with SAE 80EP lubricating oil before leaving the factory.
The actuator has an IP67 protection rating.
