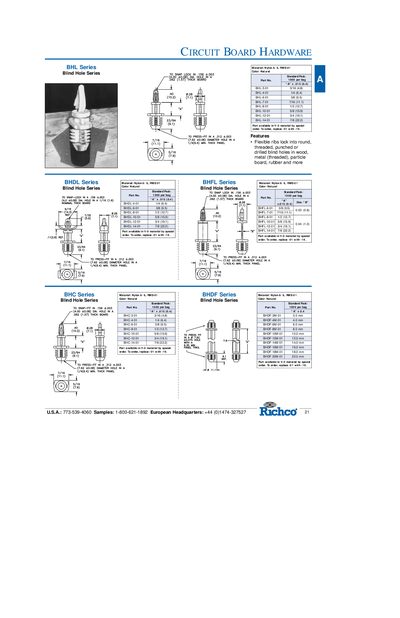

This is a product manual that introduces the BHL Series Blind Hole Series, BHDL Series Blind Hole Series, BHFL Series Blind Hole Series, BHC Series Blind Hole Series and BHDF Series Blind Hole Series in terms of material, color, part number, standard packaging and dimensions.
The document lists several series of blind‑hole circuit board hardware (BHL, BHDL, BHFL, BHC, BHDF). Each series is made from Nylon 6/6 (RMS‑01) and supplied in a natural colour. Part numbers are given with corresponding hole diameters and minimum panel thicknesses for press‑fit installation.
All parts are packed in standard packs of 1,000 pieces per bag. Special V‑0 material can be ordered by changing the suffix “-01” to “-19” in the part number. Contact information for U.S. and European offices is provided for samples and orders.
| Material | Nylon 6/6, RMS-01 |
|---|---|
| Colour | Natural |
| Snap‑lock hole diameter | 0.156 in + 0.003 in |
| Press‑fit minimum panel thickness | 0.312 in + 0.003 in |
| Special V‑0 material ordering | Replace "-01" with "-19" in part number |
They are made from Nylon 6/6, RMS‑01.
The snap‑lock hole diameter is 0.156 in plus 0.003 in.
Replace the "-01" suffix in the part number with "-19" to order V‑0 material.
