This document details the features and characteristics of a certain brand of a certain model of product.

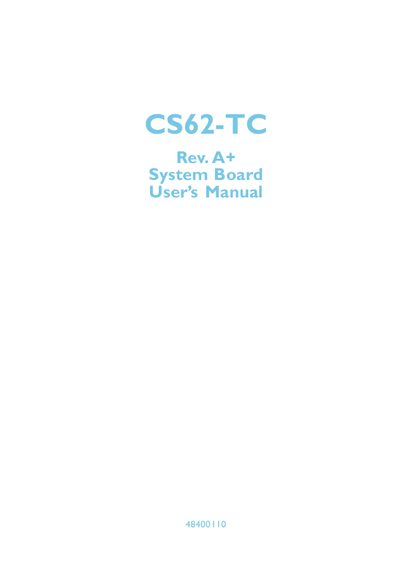

This manual covers safety precautions, hardware layout, and configuration options for the CS62-TC system board. It includes warnings about battery handling, joystick/MIDI current limits, and FCC compliance, as well as detailed descriptions of the BIOS features, power‑management settings, and jumper configurations.
The document also lists all connectors and ports (AGP, PCI, USB, IDE, serial, parallel, audio, IR), explains memory and CPU support, and provides a troubleshooting checklist with step‑by‑step procedures for common issues such as hard‑drive configuration, printer setup, and serial device connections.
| CPU socket | Socket 370 |
|---|---|
| Voltage regulator range | 0.50 V to 0.825 V |
| Supported CPUs | Pentium III, Celeron |
| Memory capacity | 32 MB to 512 MB |
| DIMM sockets | Three 168‑pin sockets |
| AGP slot | Universal AGP 2x/4x (up to 533 MB/s) |
| PCI slots | Six dedicated PCI slots |
| USB ports | Four USB ports (two onboard, two optional) |
| IDE connectors | Two IDE connectors supporting up to four IDE devices |
The board uses a Socket 370 CPU socket.
The board provides four USB ports – two built‑in and two optional ports.
The board is equipped with six dedicated PCI slots.
