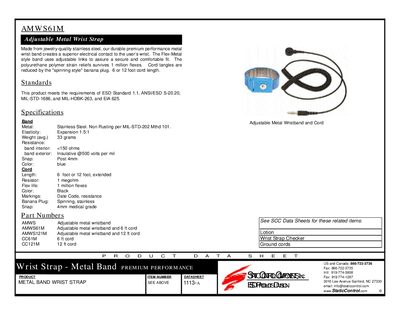

AMWS61M Metal Wrist Strap is a high-quality ESD wrist strap made of jewelry grade stainless steel to provide a superior electrical contact with the user's wrist.
The AMWS61M adjustable metal wrist strap is made from jewelry‑quality stainless steel and features a flexible metal band with adjustable links for a secure, comfortable fit. The band includes a polyurethane strain relief that survives up to one million flexes, and the banana plug uses a "spinning style" to reduce cord tangles.
The product complies with ESD Standard 1.1, ANSIV‑ESD S‑20.20, MIL‑STD‑1686, MIL‑HDBK‑263, and EIA 625. It is available with either a 6‑foot or 12‑foot cord, each equipped with a 1 MΩ resistor and a medical‑grade 4 mm snap.
| Band material | Stainless Steel |
|---|---|
| Band elasticity | 1.5:1 expansion |
| Average weight | 33 grams |
| Band interior resistance | <150 ohms |
| Band exterior rating | Insulative @500 V per mil |
| Band snap size | 4 mm |
| Band color | Blue |
| Cord length | 6 ft or 12 ft (extended) |
| Cord resistor | 1 MΩ |
| Cord flex life | 1 million flexes |
| Banana plug type | Spinning stainless |
| Cord snap size | 4 mm medical grade |
It meets ESD Standard 1.1, ANSIV‑ESD S‑20.20, MIL‑STD‑1686, MIL‑HDBK‑263, and EIA 625.
The wrist strap is offered with either a 6‑foot or a 12‑foot extended cord.
The cord includes a 1 MΩ resistor.
The polyurethane strain relief is rated for up to one million flexes.
