The SLW360 is a passive infrared technology indoor ceiling PIR light controller that uses the heat radiation of moving human bodies to sense and then illuminate an attached lighting load for a user-determined time period. An integral daylight sensor ensures day or night-only operation.

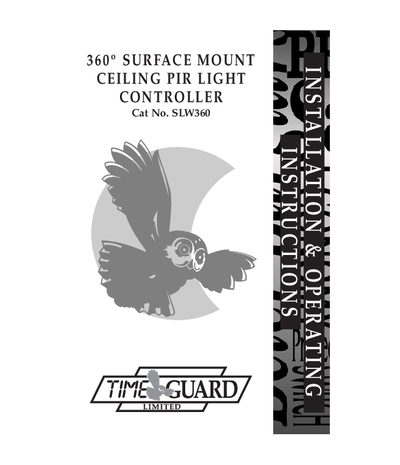

This manual describes the SLW360 surface‑mount ceiling PIR light controller, which uses passive infrared detection to switch lighting loads on for a user‑determined period. It includes safety information, recommended mounting locations, and guidance on avoiding light pollution.
The document covers step‑by‑step installation, wiring diagrams for both standard and alternative connections, adjustment of time and dusk settings, lens masking, and a walk‑test procedure to verify detection zones. Technical specifications and a three‑year guarantee are also provided.
| Detection Range | Up to 6 m diameter (3 m radius) at mounting height of 2.5 m |
|---|---|
| Power Supply | 230 V AC ~ 50 Hz |
| Maximum Switchable Load | 2000 W filament/incandescent or 500 W fluorescent/low‑energy lighting |
| Time On Adjustment | 5 seconds – 18 minutes |
| Dusk Level Adjustment | Day & night or night‑only operation |
| Environmental Protection | IP44 (suitable for outdoor use) |
| Conforms to Directives | 73/23/EEC and 89/336/EEC |
The controller can switch up to 2000 W of filament/incandescent lighting or up to 500 W of fluorescent/low‑energy lighting.
